The flagship of the Bounty Bathroomware range, the Bermuda floor waste system is a simple, discreet solution for any bathroom or wet area. Bermuda cleverly incorporates the selected floor tiles (or a feature tile) to blend beautifully with any environment. Water simply disappears from your bathroom / shower floor.
STANDARD FINISH
Chrome Plate
(ASTD 1192-2004)
| CODES | A | B | C | D |
|---|---|---|---|---|
| 11101.01 | 115 | 100.0 | 28 | 48 |
| 11102.01 | 115 | 74.8 | 28 | 48 |
| DESCRIPTION | CODE | FINISH | CTN QTY |  |
|---|---|---|---|---|
| 115x100mm Square CP | 11101.01 | Chrome | 20 |  |
| 115x80mm Square CP | 11102.01 | Chrome | 20 | |

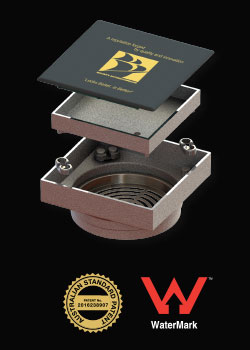

With new innovative acoustic dampeners & construction dust cover plate.
The standard Bermuda Floor Grate offers a choice of decorating options! The centre tile recess allows a coordinated tile to be at one with the surrounding floor tiles, in effect disappearing into the overall décor.
Available in 100mm (11101) and 80mm (11102) connection size.
NOTE: The finishes shown above are only indicative of the actual product and should not be used for colour matching.
MATERIALS:
| FACE DIMENSION | 270mm x 270mm |
| TRAY RECESS | 240mm x 240mm x 24mm |
| CONNECTION SIZE | 90mm / 100mm |
| MATERIAL | ABS / 316 Stainless steel |
| FINISH | Stainless Steel |
| DESCRIPTION | CODE | FINISH | CTN QTY | |
|---|---|---|---|---|
| Stormwater Bermuda CP | 11105.12 | S/Steel | 10 | |
MATERIALS:
STANDARD FINISH
Chrome Plate
(ASTD 1192-2004)
| CODES | A | B | C | D | E |
|---|---|---|---|---|---|
| 11203.01 | 100 | 102 | 22 | 86 | 86 |
| 11204.01 | 100 | 75 | 22 | 76 | 63 |
| 11205.01 | 100 | 50.8 | 22 | 65 | 42 |
Note: Tile tray internal depth is 12mm
| CODES | A | B | C | D | E |
|---|---|---|---|---|---|
| 11213.01 | 100 | 102 | 18 | 82 | 86 |
| 11214.01 | 100 | 75 | 18 | 72 | 63 |
| 11215.01 | 100 | 50.8 | 18 | 61 | 42 |
Note: Tile tray internal depth is 8mm
| DESCRIPTION | CODE | FINISH | CTN QTY | |
|---|---|---|---|---|
| 100x100mm Megaflex™ Square CP | 11203.01 | Chrome | 20 | |
| 100x80mm Megaflex™ Square CP | 11204.01 | Chrome | 20 | |
| 100x50mm Megaflex™ Square CP | 11205.01 | Chrome | 20 | |
| Megaflex™ Bermuda Retrofit Grate Kit CP | 19201.01 | Chrome | each | |
| 100x100mm Lowline Megaflex™ Square CP | 11213.01 | Chrome | 20 | |
| 100x80mm Lowline Megaflex™ Square CP | 11214.01 | Chrome | 20 | |
| 100x50mm Lowline Megaflex™ Square CP | 11215.01 | Chrome | 20 | |

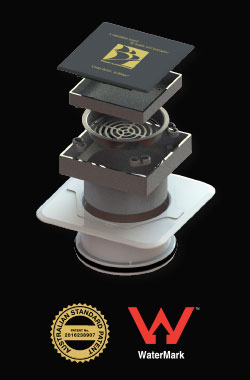

With new innovative acoustic dampeners & construction dust cover plate.
The Megaflex™ Bermuda offers the same superior finish as our standard Bermuda Range with the inclusion of our industry leading MegaflexTM leak control flange, to ensure a watertight seal!
Available in 100mm (11203), 80mm (11204) and 50mm (11205) connection size.
NOTE: The finishes shown above are only indicative of the actual product and should not be used for colour matching.
11213 11214 11215 – Only available in Chrome, Polished Brass, Brushed Nickel, Brushed Gold and Matt Black.
19201 – Only available in Chrome.
Incorporates Megaflex™ Leak Control Flange for superior waterproofing and flexibility of installation.
MATERIALS:
STANDARD FINISH
Chrome Plate
(ASTD 1192-2004)

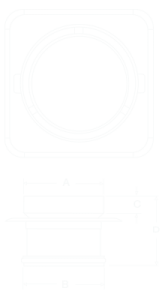

| CODES | A | B | C | D |
|---|---|---|---|---|
| 11351.01 | 115.0 | 102.0 | 20.0 | 86.0 |
| 11352.01 | 115.0 | 75.0 | 20.0 | 76.6 |
| 11353.01 | 115.0 | 52.2 | 20.0 | 61.3 |
Note: Tile tray internal depth is 13mm
| DESCRIPTION | CODE | FINISH | CTN QTY | |
|---|---|---|---|---|
| 115x100mm Megaflex™ Round CP | 11351.01 | Chrome | 20 | |
| 115x80mm Megaflex™ Round CP | 11352.01 | Chrome | 20 | |
| 115x50mm Megaflex™ Round CP | 11353.01 | Chrome | 20 | |
NOTE: The finishes shown above are only indicative of the actual product and should not be used for colour matching.
MATERIALS:
STANDARD FINISH
Chrome Plate
(ASTD 1192-2004)

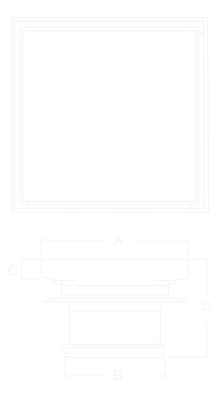

| CODES | A | B | C | D |
|---|---|---|---|---|
| 11421.01 | 150 | 102.8 | 20 | 99 |
| 11422.01 | 150 | 102.8 | 20 | 99 |
Note: Tile tray internal depth is 13mm
| DESCRIPTION | CODE | FINISH | CTN QTY | |
|---|---|---|---|---|

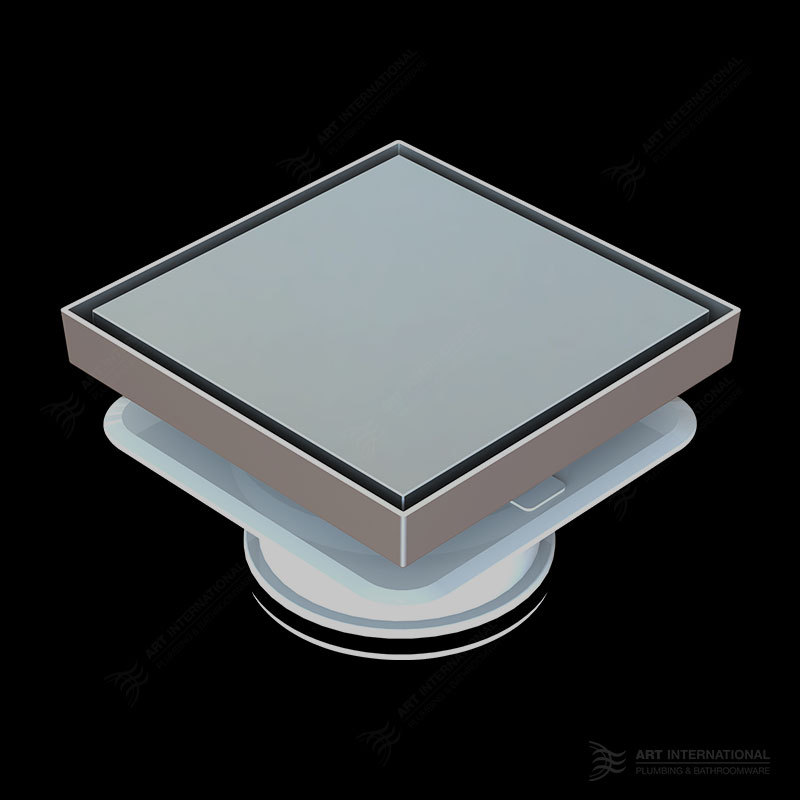

| 150x100mm Square Deluxe Megaflex™ Reflections CP | 11421.01 | Chrome | 20 | |
| 150x100mm Square Deluxe Megaflex™ CP | 11422.01 | Chrome | 20 | |
MATERIALS:
STANDARD FINISH
Chrome Plate
(ASTD 1192-2004)
| CODES | A | B | C | D |
|---|---|---|---|---|
| 11501.01 | 115.0 | 102.0 | 20.0 | 86.0 |
| 11502.01 | 115.0 | 75.0 | 20.0 | 76.6 |
| 11503.01 | 115.0 | 52.2 | 20.0 | 61.3 |
| 11511.01 | 115.0 | 102.0 | 20.0 | 82.0 |
Note: Tile tray internal depth is 13mm
| DESCRIPTION | CODE | FINISH | CTN QTY | |
|---|---|---|---|---|
| 100mm Megaflex™ Flipper Round CP | 11501.01 | Chrome | 20 | |
| 80mm Megaflex™ Flipper Round CP | 11502.01 | Chrome | 20 | |
| 50mm Megaflex™ Flipper Round CP | 11503.01 | Chrome | 20 | |
| 100mm Megaflex™ Flipper Round on Square CP | 11511.01 | Chrome | 20 | |
NOTE: The finishes shown above are only indicative of the actual product and should not be used for colour matching.
MATERIALS:
STANDARD FINISH
Chrome Plate
(ASTD 1192-2004)

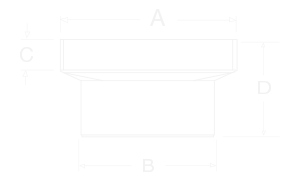

| CODES | A | B | C | D |
|---|---|---|---|---|
| 11801.01 | 100.0 | 75.3 | 18.0 | 55.0 |
Note: Tile tray internal depth is 8mm
| DESCRIPTION | CODE | FINISH | CTN QTY | |
|---|---|---|---|---|

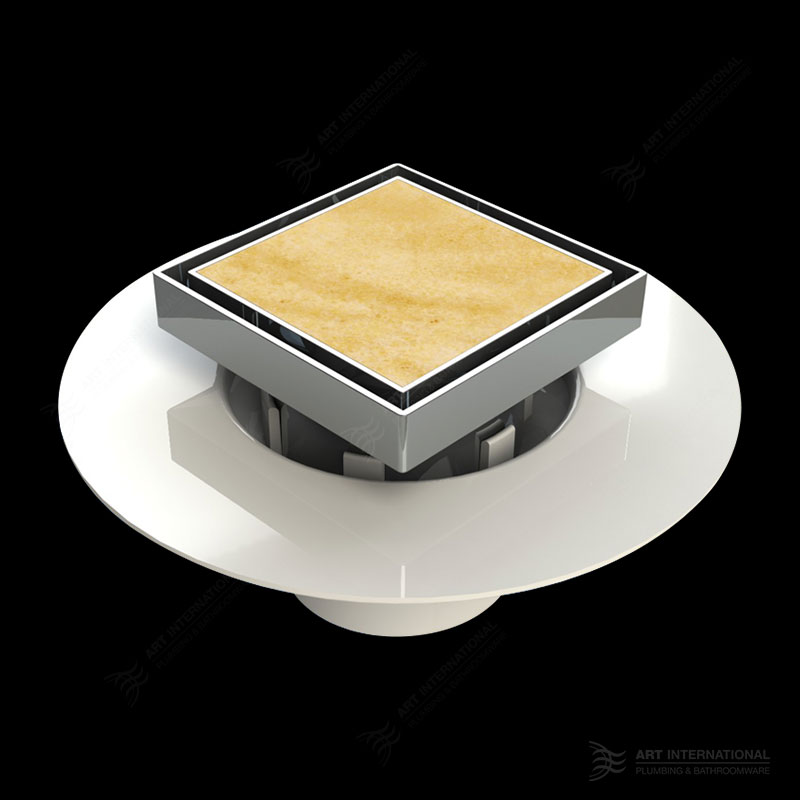

| 100x80mm Square Leak Control CP | 11801.01 | Chrome | 20 | |
MATERIALS:
| DESCRIPTION | CODE | FINISH | CTN QTY |
|---|---|---|---|

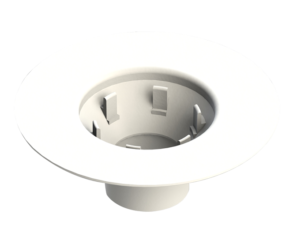

| Puddle Flange 80mm x 50mm Socket | 32201 | White | 60 |
| Puddle Flange 80mm In Pipe | 32211 | White | 60 |
